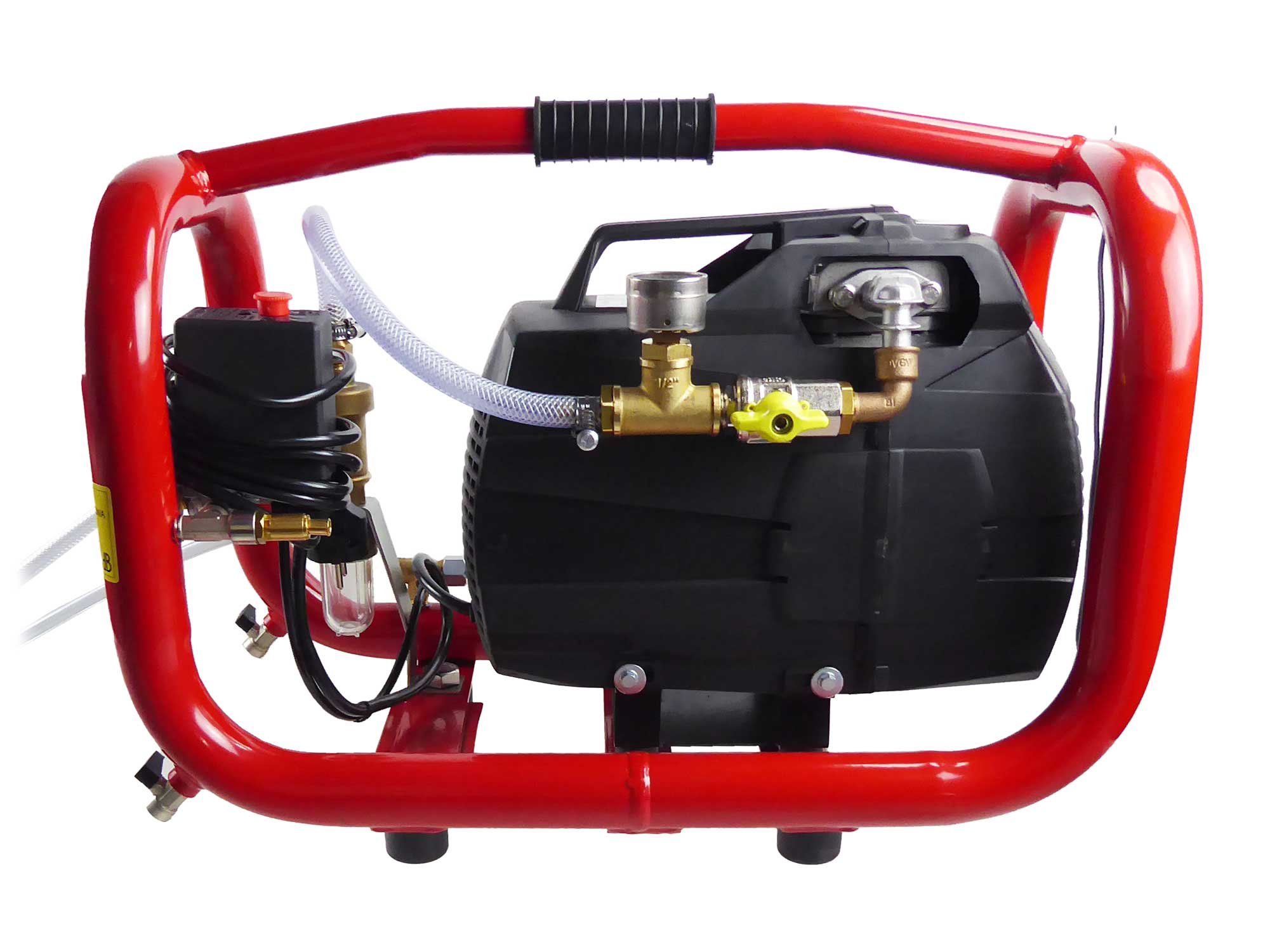

Pressure-Vacuum-Pump ÜVP218, 230VAC, 1,5kw,liq.stop,cond.trap,valve,2 manom.

  • Pressure-Vacuum-Pump ÜVP218, 230VAC, 1,5kw,liq.stop,cond.trap,valve,2 manom.
    Pressure-Vacuum-Pump ÜVP218, 230VAC, 1,5kw,liq.stop,cond.trap,valve,2 manom.

    For increasing, move mouse over the picture
    ueber-unterdruckpumpe-uevp218-240v-1-5kw-fluessigkeitssperre-kondensatgefaess-hahn-manometer-200840-m.jpg
Article No.
200840
Price
Price on request
Quantity
pcs

Pressure-Vacuum-Pump ÜVP218

not explosion-proof

suitable for vacuum or overpressure creation at big interstitial spaces

e.G. flat bottom tanks or cylindrical tanks

with condensate trap, liquid stop valve, stop cock and gauge in suction line

Pressure reducer in pressure line

Operating temperature range: +5°C bis +45°C

Supply: 230VAC

Power rating: 1,5KW

incl. motor protection

180l/min at free aspiration

max. vacuum: 850mbar

max. overpressure: 8,0 bar

Weight: 18 kg

Tube frame including handle

pneumatic connection: hose connection H6 for polyvinylchloride (PVC) hose 10/6x2mm

incl. 5m PVC-hose 10/6x2mm
